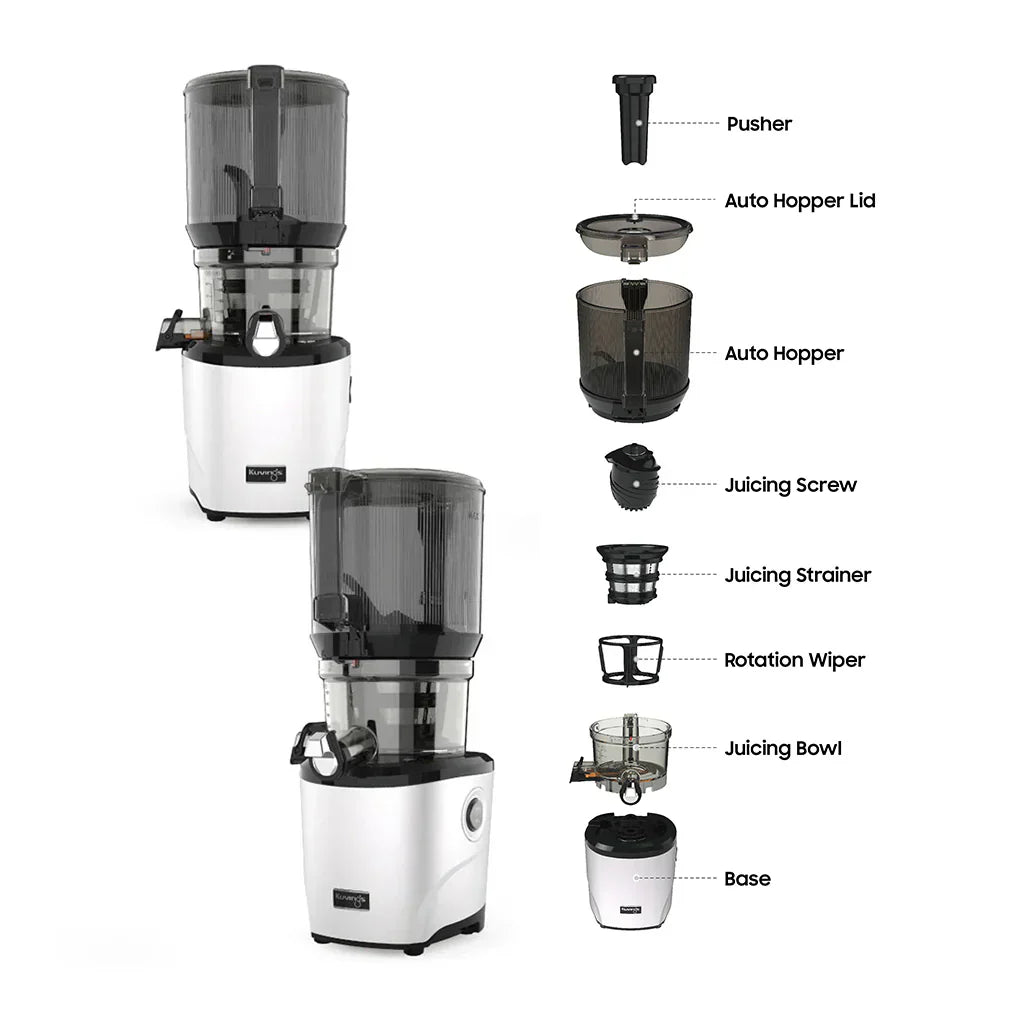

How to assemble

The press only works when properly assembled.

1. Install the pressing net into the rotating frame.

The rotating frame is only for use with the juicer and smoothie maker. The rotating frame will rotate smoothly when the juicer is properly installed.

2. Make sure the silicone gaskets in the pulp outlet of the juicer are properly installed. After checking, lock the pulp outlet.

3. Place the pressing mesh into the pressing box according to the red dots on each part.

When properly installed in the press box, the press screen and rotating frame will not move..

4. Insert the pressing blade into the center of the pressing mesh. Press it down to secure it.

The automatic material container will not rest on the press box if the press knife is not pushed down completely. The press knife must be level with the rim of the press screen.

5. Place the automatic material feeder on the press box so that the arrow symbol on the automatic material feeder aligns with the unlock symbol on the press box.

6. Rotate the automatic feeder clockwise until the arrow symbol aligns with the lock symbol.

7. Place the assembled parts onto the press body.

The juice outlet spout should be on the same side as the Kuvings logo.

8. Plug the power cord into the outlet. Press the "Forward" button to check if your juicer has power.

9. To open the automatic ingredient container lid, use your thumb to push up the locking latch on the handle.

Opening the lid while the machine is running will cause the juicer to stop.

How to disassemble

Turn off the juicer and unplug the power cord from the outlet before disassembling.

1. Press and hold the locking pin on the handle.

2. Rotate the automatic material container counterclockwise so that the arrow symbol is aligned with the unlock symbol.

3. Lift the automatic material container out of the press box.

4. Lift the press box assembly out of the press body.

5. Remove the rotating frame, pressing screen and pressing knife from the pressing box.

6. Pull the press knife up from the press mesh. You can also push the press knife up from the bottom of the press mesh.

7. Remove the rotating frame from the pressing screen.
